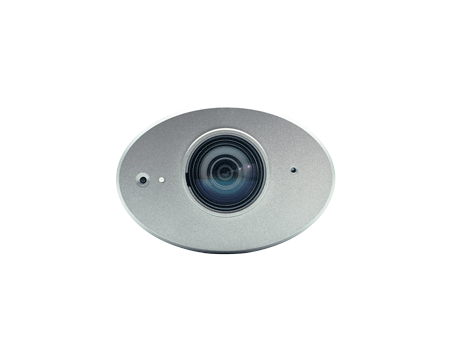

Ceiling Document Camera

  • Full HD 1080p high-definition 30fps camera
  • 30x optical zoom
  • DVI, USB, Ethernet and VGA
  • Supports RTSP streaming and PoE
  • Multiple local and remote control options
  • 5 Year Warranty



Contact Sales

Overhead Imaging

CL510  is designed to be suspended from, or embedded into the ceiling to provide an overhead view of a lectern, desk, or demonstration area. The camera features a 1080p resolution image sensor, professional 30x optical zoom, and 30 frames per second output to deliver smooth, sharp images. High quality and low profile, the camera can be installed in classrooms, video conferencing rooms, laboratories, lecture halls, courtrooms, and operating theaters.

AV, VC and Streaming

Featuring DVI, USB, VGA, and Ethernet video outputs, users can output to video conferencing platforms, projectors and large format displays, and devices connected to the local network. The RTSP stream is compliant with a range of software video players, streaming decoders, and IP-based hardware meaning that the CL510 integrates into streaming infrastructures with ease.

File Management and Archiving

With internal storage and support for USB flash drives (up-to 32GB), recorded images and video can be archived or simply shared as standard media files. Images can also be uploaded to the device, allowing users to compare archived pictures with live video. This can be an excellent tool for training, medical assessment, or for displaying evidence.

Enhancing the Experience

The remote controller gives users access to the camera settings and a suite of tools to adjust and optimize the picture, capture images and video, and playback recordings. Connect a USB mouse to the camera for direct access to live annotation tools that can highlight regions on an image on screen with arrows, shapes, and freehand drawing. Connect the CL510 to a PC or Mac running Lumens Ladibug software for access to even more powerful annotation, graphic, text overlay, and image management tools.

Control Interface

Versatile control options include infrared remote control, USB device management, RS-232 interface, and a web-based network remote control panel. Browser-based system administration is secure, protecting your live video stream from unauthorized viewers.

5 Year Warranty

Lumens offers a 5-year warranty with all its products as standard.

*The warranty policy may be different depending on the sales region, please contact your local salesperson.





Support


Contact SalesService Request

More Details

Download Product Documents

Documents Upload Time
CL510 Software 2022-12-23
CL510 Datasheet 2021-06-28
CL510 User Manual 2019-07-02

Optional Accessories

CAB-AOCU-ML

CAB-AOCU-ML
CL-AC01

CL-A01
