PTZ Video Format
1080p : 60 / 50 / 30 / 25
720p : 60 / 50

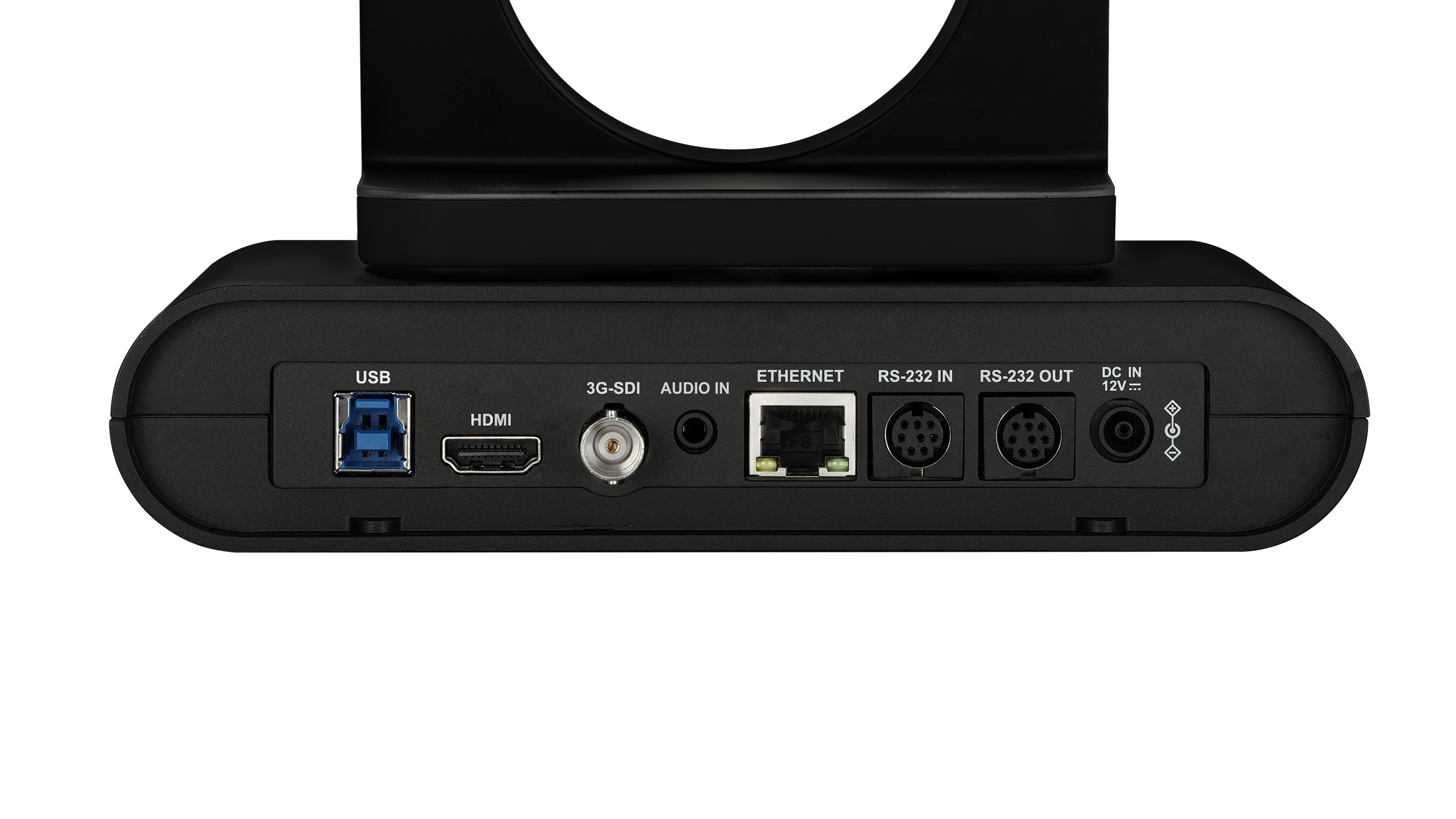

Video Output (HD) Interface
HDMI / Ethernet / 3G-SDI / USB 3.0
PTZ Viewing Angle
58.7° (H) / 33° (V) / 67.3° (D)
PTZ Focal Length
4.9mm ~ 94mm
Shutter Speed
1/25 ~ 1/10,000 sec
Minimum Object Distance
500mm
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Focus System
Auto / Manual
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
Auto-Tracking
Everywhere / Stage / Partition
Auto Framing
Everywhere / Partition
Panoramic Sensor
1/2.8" 2MP CMOS
Panoramic Video Format
720p30
Panoramic Viewing Angle
111° (H) / 62° (V)
Panoramic Focal Length
3.1mm
Panning Angle
+170° ~ -170°
Panning Speed
0.2° ~ 120°/sec
Tilting Angle
+90° ~ -30°
Tilting Speed
0.2 ~ 80°/sec
IP Stream
PTZ Camera
Main : 1080p60
Second : 720p30
Panoramic Camera : 720p30
IP Protocol
HTTP / RTSP / RTMP / RTMPS / SRT
Audio Input
Line In / MIC In
Audio Output
Ethernet / USB 3.0 / HDMI / SDI
Audio Compression Format
AAC / PCM
Interface
RS-232 / Ethernet / USB 3.0
Power consumption
PoE : 11W
DC In : 10W
Dimension
7.5" x 7.3" x 5.4"
(190 ×185 ×138 mm)
