PTZ Camera Sensor
1 / 2.8" 2.16MP CMOS
PTZ Camera Video Format
1080p60
1080p50
1080p30
1080p25
720p60
720p50
Video Output (HD) Interface
HDMI / Ethernet / USB 3.0

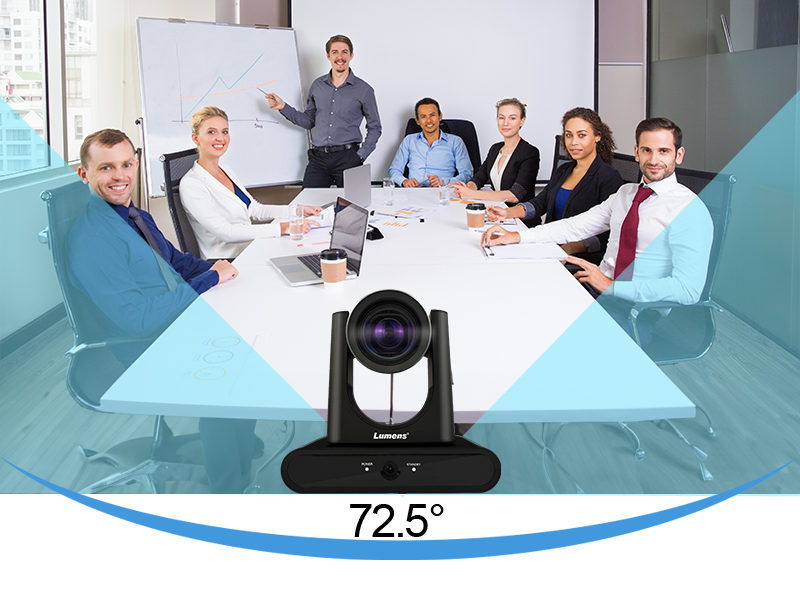

PTZ Camera Horizontal Viewing Angle
72.5°
PTZ Camera Vertical Viewing Angle
40.8°
Diagonal Viewing Angle
83.2°
PTZ Camera Aperture
F1.6 ~ F2.8
PTZ Camera Focal Length
f = 3.9mm ~ 46.8mm
Shutter Speed
1 / 25 ~ 1 / 10,000 sec
Minimum Object Distance
Wide = 1000mm , Tele = 1500mm
Minimum Illumination
1 lux (F1.6, 50IRE, 30fps)
Focus System
Auto, manual
Gain Control
Auto, manual
White Balance
Auto, manual
Exposure Control
Auto, manual
Auto Tracking
Everywhere / Stage / Partition
Auto Framing
Everywhere / Partition
Panoramic Camera Sensor
1 / 2.8" 2MP CMOS
Panoramic Camera Video Format
720p30
Panoramic Camera Horizontal Viewing Angle
111°
Panoramic Camera Vertical Viewing Angle
62°
Panoramic Camera Aperture
F2.4
Panoramic Camera Focal Length
3.1mm
Panning Angle
+170 ~ -170°
Panning Speed
0.2 ~ 120° / sec
Tilting Speed
0.2 ~ 80° / sec
IP Stream
PTZ Camera
Main: 1080p60
Second: 720p30
Panoramic Camera: 720p30
IP Protocol
HTTP / RTSP / RTMP / RTMPS / SRT
Audio Input
Line In / MIC In
Audio Output
Ethernet / USB 3.0 / HDMI
Audio Compression Format
AAC / PCM
Interface
RS-232 / Ethernet / USB 3.0
Power consumption
PoE: 11W
DC In: 10W
Dimension
7.5" x 7.3" x 5.4"
(190 ×185 ×138 mm)
