CamConnect Lite




Synchronize your Mics and Cameras

CamConnect Lite is a complimentary software application which integrates Lumens PTZ camera control with a range of microphone array systems.

By integrating the microphone array, the PTZ camera will automatically switch to focus on the active-speaking participant in a meeting space. This greatly improves the video conference experience.



How does CamConnect Lite work?

By using live data from microphone, CamConnect Lite determines the active speaker's position and moves the PTZ camera to the appropriate preset position. This voice-activated control system is ideal for medium sized conference and meeting rooms.





Key Features




Simply connect your PTZ camera and microphone array system



Voice-activated solution for meeting rooms



Easy to configure




Connection Diagram

PC (or laptop) with CamConnect Lite Software and a standard Video Conferencing Software or Unified Communications Service



Conference Room Configuration Diagram



Using live data provided by the microphone, CamConnect Lite establishes the position of the active speaker in a conference room and directs the PTZ camera to switch to the appropriate preset position. This voice-activated system is ideal for mid-sized conference and meeting rooms.



Easy to Configure

No programming is required: set up is via an installation wizard. CamConnect Lite connects selected Lumens PTZ cameras to a range of microphone systems from Shure®, Sennheiser® and Nureva®. This immediately turns your Lumens PTZ camera into a sophisticated voice tracking camera.






Supported Microphone Systems

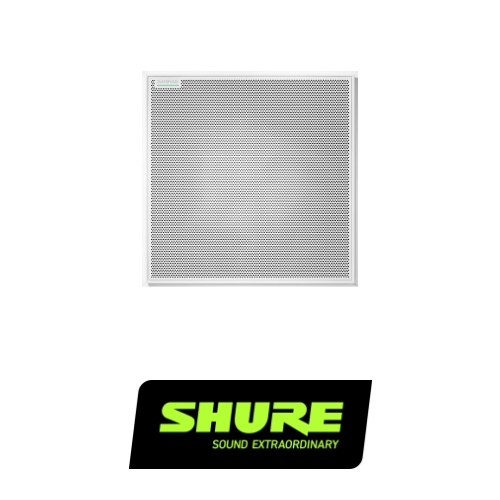

Shure® MXA920 Ceiling Array Microphone
MXA910 Ceiling Array Microphone
MXA310 Microphone

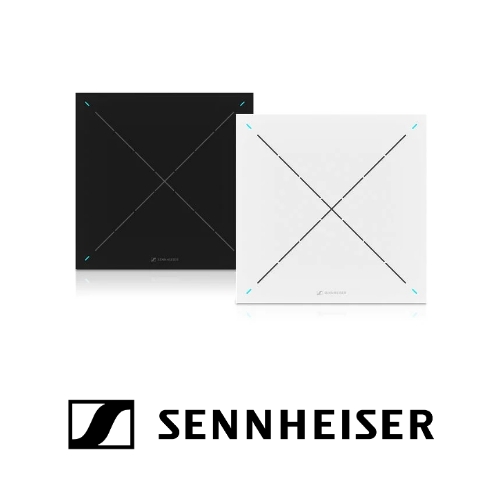

Sennheiser® TeamConnect Ceiling 2 Microphone

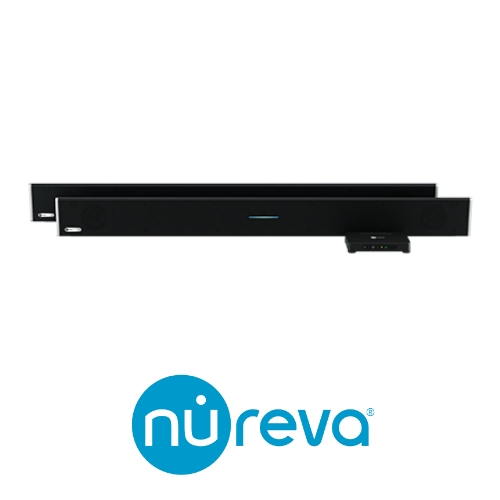

Nureva® HDL300 Audio Conferencing System

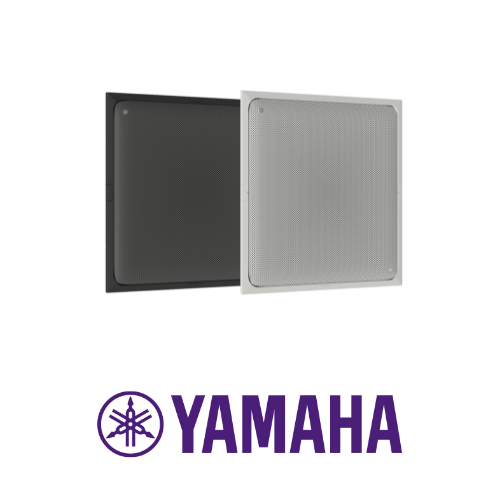

Yamaha® Yamaha RM-CG Ceiling Array Microphone

Shure and Shure logo are trademarks of Shure Inc.
Sennheiser and Sennheiser logo are trademarks of Sennheiser electronic GmbH & Co.
Nureva and Nureva logo are trademarks of Nureva Inc.
Yamaha and Yamaha logo are trademarks of Yamaha Music Europe GmbH.





Supported PTZ Camera



VC-A71P

VC-TR40

VC-R30

VC-B30U



Minimum PC Specifications

Support OS Windows 10 / Windows 11
CPU Intel i5 / i7 above
Memory 4GB RAM
Free Disk Space 1GB Free Disk Space
Min. Screen Resolution 1920 x 1080
